Install the card and drivers for the Waveterminal 192X , following the
directions in its manual.
If you obtained your Waveterminal 192X from Liberty Instruments, you also
received a pair of adaptors, connected together, in a small bag. Adaptor
#1 is a [stereo mini-phone jack] to [stereo 1/4” phone plug adaptor].
The other (#2) is a [stereo 1/4” phone jack] to [stereo mini-phone
plug] adaptor. You will need these to connect your soundcard to the
AudPod.
Your Waveterminal 192X comes with a [stereo phone plug] to [two mono phone
plugs] cable in its box. Locate this cable and connect its stereo plug end
to adaptor #2. Then connect the white mono phone plug to the soundcard’s
“LINE IN L” jack, and the red mono phone plug to the soundcard’s “LINE
IN R” jack. Connect the stereo mini-phone plug end to the “To Sound Line
In” jack on your AudPod.
Connect one of the [stereo mini-phone plug] to [stereo mini-phone plug]
cables that came with your AudPod to adaptor #1. Connect the remaining
mini-phone plug end to the “From Sound Line Out” jack of your AudPod.
Connect the stereo 1/4” phone plug to the soundcard’s “OUT 1,2”
jack.
Connect the USB cable from the AudPod to your computer.

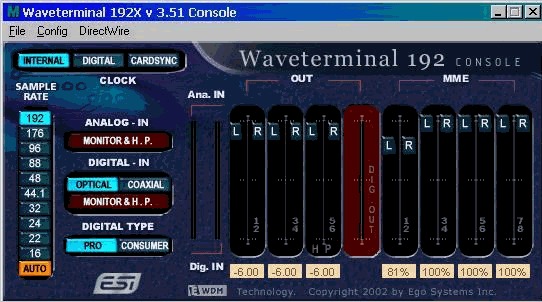

The Waveterminal 192X comes with a Console program. Set its controls to
resemble the form shown (be sure to select AUTO sample rate and INTERNAL
clock, with NO monitoring enabled).
Be sure to select the “1-Waveterminal 192 2-ch->1-Waveterminal 192
2-ch” device in the Setup menu of Praxis’ “Levels Form”.
Perform the steps described in “Getting Started With Praxis”. This
sheet can also be found at http://www.libinst.com/praxis_download.htm
In step (D), use the “WAVE_EXT” menu in its checked state.

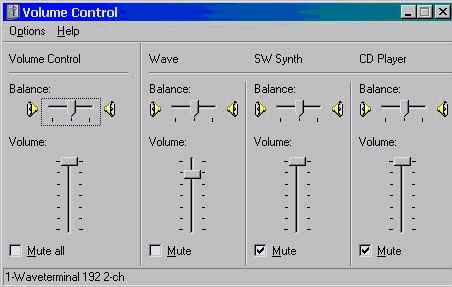

Example final settings for the Windows Playback Mixer of this card are
shown below (there is no Record Mixer):
